Hidden Frame Curtain Wall System Structural Glazing System China Manufacturer
Item specifics
- Frame Type
- Hidden Frame Curtain Wall
- Material
- Aluminum Profiles + Tempered Glass
- Glass Options
- Double Glazing / Laminated / Low-E
- Surface Finish
- Powder Coating / PVDF / Anodized
- Structure
- Framed (Exposed Aluminum)
- Application
- Commercial Buildings / Office Towers / Malls
- Performance Standard
- ASTM / AAMA
Review
Description
Hidden Frame Curtain Wall – Product Overview

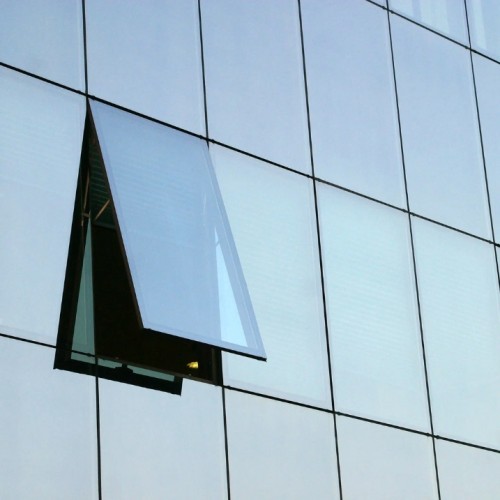

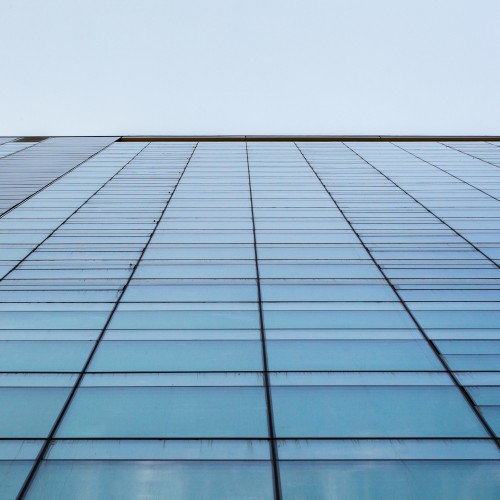

The hidden frame curtain wall system uses structural silicone bonding to fix glass panels, eliminating visible aluminum framing and creating a smooth, all-glass facade.
Why Choose Our Aluminum Glass Curtain Wall Facade
✔ High Structural Stability for High-Rise Buildings
Engineered with mechanically fixed aluminum framing, the system delivers excellent performance under wind load and seismic conditions.
✔ Cost-Effective Commercial Solution
Lower manufacturing and installation costs compared to unitized curtain wall systems, ideal for budget-controlled projects.
✔ Flexible Architectural Design
Supports various:
· Glass types (Low-E, laminated, double glazing)
· Surface finishes (PVDF, anodized, powder coating)
· Colors and facade styles
✔ Easy Installation & Maintenance
· On-site assembly allows flexible adjustments
· Convenient for long-term repair and replacement
· Suitable for international construction projects
✔ Proven Performance & Compliance
· Meets ASTM and AAMA standards
· Excellent water tightness and air sealing
· Long-term corrosion resistance for coastal environments
Technical Performance
| Item | Performance | |
| Wind Load Resistance | 3000–7000 Pa | |
| Water Tightness | ≥ 300–600 Pa | |
| Air Infiltration | ≤ 0.06–0.3 cfm/ft² | |
Thermal Performance | 1.2–2.5 W/m²·K | |
| Acoustic Insulation | 35–50 dB | |
Seismic Performance | ±20–25 mm Inter-story drift | |
Corrosion Resistance | 2000h Salt Spray Test | |

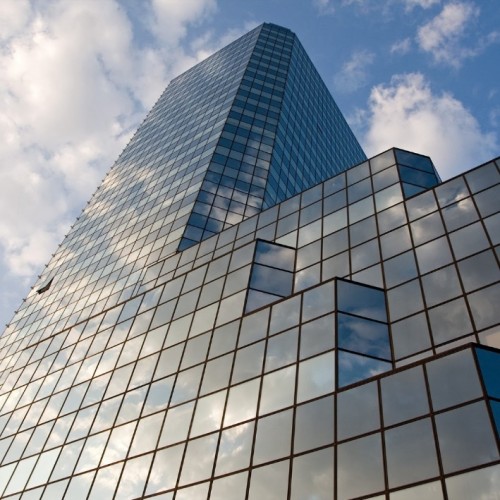

Applications – Commercial Curtain Wall Projects
· Office Buildings
· Shopping Malls
· Hotels
· Commercial Complexes
· Public Infrastructure
This aluminum glass curtain wall facade is widely used in modern urban architecture requiring both performance and aesthetics.
FAQ – Curtain Wall System
Q1: What is the main difference between visible and hidden frame curtain walls?
The main difference is the visibility of the aluminum frame: visible frame systems display all structural elements, while hidden frame systems completely conceal them for a sleek, frameless look.
Q2: Is this system suitable for high-rise buildings?
Yes, it is designed to meet high wind load and seismic performance standards.
Q3: Can the glass and color be customized?
Yes, we offer full customization for glass types, coatings, and aluminum finishes.
Q4: What standards does the system comply with?
It complies with ASTM, AAMA, and international facade standards.
Q5: Do you provide project support?
Yes, we provide:
· Shop drawings
· Engineering solutions
· Installation guidance
· OEM/ODM services
