Glass fin curtain wall system Structural Glass Support System China Manufacturer
Item specifics
- Frame Type
- Visible Frame Curtain Wall
- Material
- Tempered Glass + Laminated Glass Fins
- Glass Options
- Double Glazing / Laminated / Low-E
- Structure
- Frameless (Glass Fins as Structural Support)
- Application
- Commercial Buildings / Office Towers / Malls
- Performance Standard
- ASTM / AAMA
Review
Description
Glass Fin Curtain Wall – Product Overview

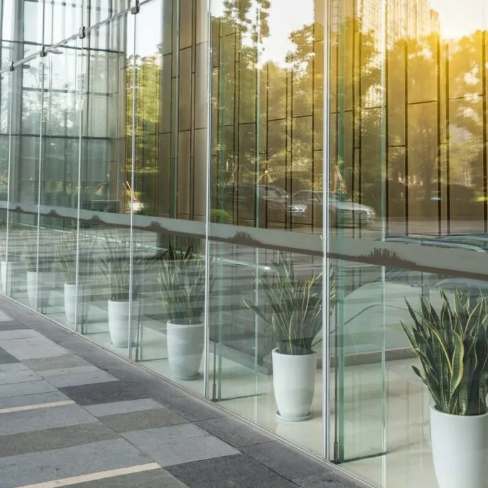

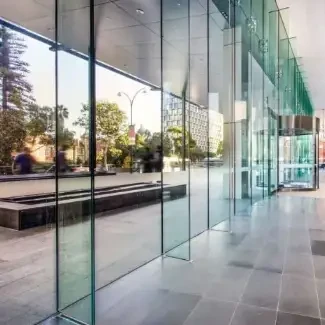

The glass fin curtain wall system uses vertical glass fins as structural supports instead of aluminum frames, achieving maximum transparency and minimal visual obstruction.
Why Choose Our Aluminum Glass Curtain Wall Facade
✔ Full Transparency Design
Maximize visual openness with a frameless all-glass system, creating a clean and modern architectural look.
✔ Cost-Effective Commercial Solution
Lower manufacturing and installation costs compared to unitized curtain wall systems, ideal for budget-controlled projects.
✔ Enhanced Natural Daylighting
Allows abundant natural light into interior spaces, improving comfort and reducing energy consumption.
✔ Easy Installation & Maintenance
· On-site assembly allows flexible adjustments
· Convenient for long-term repair and replacement
· Suitable for international construction projects
✔ Proven Performance & Compliance
· Meets ASTM and AAMA standards
· Excellent water tightness and air sealing
· Long-term corrosion resistance for coastal environments
Technical Performance
| Item | Performance | |
| Wind Load Resistance | 3000–7000 Pa | |
| Water Tightness | ≥ 300–600 Pa | |
| Air Infiltration | ≤ 0.06–0.3 cfm/ft² | |
Thermal Performance | 1.2–2.5 W/m²·K | |
| Acoustic Insulation | 35–50 dB | |
Seismic Performance | ±20–25 mm Inter-story drift | |
Corrosion Resistance | 2000h Salt Spray Test | |
Applications – Commercial Curtain Wall Projects
· Office Buildings
· Shopping Malls
· Hotels
· Commercial Complexes
· Public Infrastructure
This glass curtain wall facade is widely used in modern urban architecture requiring both performance and aesthetics.
FAQ – Curtain Wall System
Q1: What is the difference between visible frame and unitized curtain wall?
Visible frame systems are installed on-site and are more cost-effective, while unitized systems are pre-assembled in factories.
Q2: Is this system suitable for high-rise buildings?
Yes, it is designed to meet high wind load and seismic performance standards.
Q3: Can the glass and color be customized?
Yes, we offer full customization for glass types, coatings, and aluminum finishes.
Q4: What standards does the system comply with?
It complies with ASTM, AAMA, and international facade standards.
Q5: Do you provide project support?
Yes, we provide:
· Shop drawings
· Engineering solutions
· Installation guidance
· OEM/ODM services
