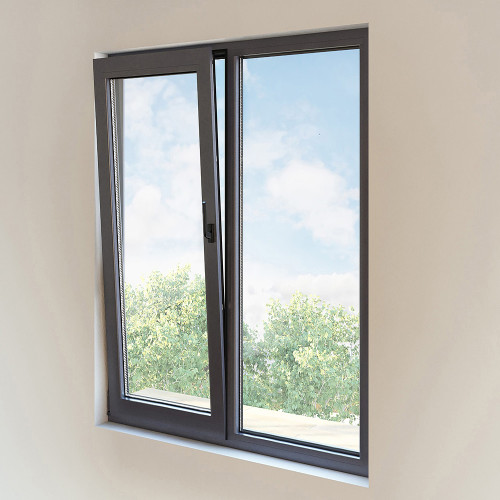

Tilt and Turn Window – Product Overview
The aluminum tilt and turn window is a premium window solution widely used in Europe. It combines two opening functions in one system: inward opening for maximum ventilation and tilt opening for secure, controlled airflow. Engineered with advanced hardware systems and high-performance glazing, it delivers exceptional energy efficiency, safety, and comfort.
Why Choose Our Aluminum Tilt and Turn window
● Dual Opening Function
Tilt for secure ventilation, turn for full opening and easy cleaning.
● Superior Sealing Performance
Multi-point locking system ensures excellent airtightness and water resistance.
● High Energy Efficiency
Supports double or triple glazing with thermal break profiles for optimal insulation.
● Enhanced Security
Advanced locking mechanisms improve safety for residential and commercial use.
● Easy Maintenance
Inward opening allows safe and convenient cleaning from inside.
✔ Proven Performance & Compliance
· Meets ASTM and AAMA standards
· Excellent water tightness and air sealing
· Long-term corrosion resistance for coastal environments
Technical Performance
| Item | Performance | |
| Wind Load Resistance | 3000–7000 Pa | |
| Water Tightness | ≥ 300–600 Pa | |
| Air Infiltration | ≤ 0.06–0.3 cfm/ft² | |
Thermal Performance | 1.2–2.5 W/m²·K | |
| Acoustic Insulation | 35–50 dB | |
Seismic Performance | ±20–25 mm Inter-story drift | |
Corrosion Resistance | 2000h Salt Spray Test | |
Applications – Commercial Projects
● Villas
● Apartments
● High-end Residential Projects
● Hotels
● Commercial Buildings
This aluminum tilt and turn window is widely used in modern urban architecture requiring both performance and aesthetics.
FAQ – Tilt and Turn System
Q1: Can the tilt and turn window meet high energy-efficiency requirements?
Yes, our system supports double or triple glazing combined with thermal break aluminum profiles, achieving low U-values suitable for energy-efficient and passive building projects.
Q2: How does the dual opening function benefit project applications?
The tilt function allows secure, controlled ventilation, while the turn function provides full opening for maximum airflow and easy cleaning. This flexibility makes it ideal for residential and high-end projects.
Q3: Can the system comply with European or international standards?
Yes, our tilt and turn windows are designed based on European standards and can be tested according to ASTM or EN requirements. Performance reports can be provided upon request.
Q4: Do you support customization based on architectural drawings?
Absolutely. We offer full customization including dimensions, glass configuration (double/triple glazing), hardware systems, finishes, and opening directions. Shop drawings and technical support are included.
Q5: Do you provide project support?
Yes, we provide:
· Shop drawings
· Engineering solutions
· Installation guidance
· OEM/ODM services
