Aluminum Skylight Roof Window Glass Roof System Manufacturer Fowall
Item specifics
- Type
- skylight
- Material
- Aluminum Alloy + Tempered Glass
- Glass Type
- Double Glazing / Laminated Glass / Low-E Glass / Triple Glazing
- System Type
- Unitized / Semi-unitized / Stick-built
- Surface Treatment
- Powder Coating / PVDF Coating / Anodized
Review
Description

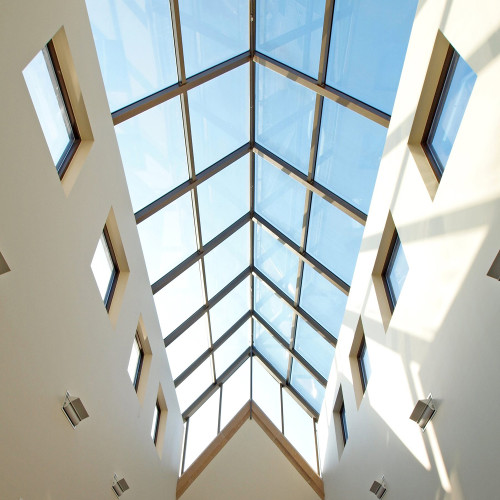

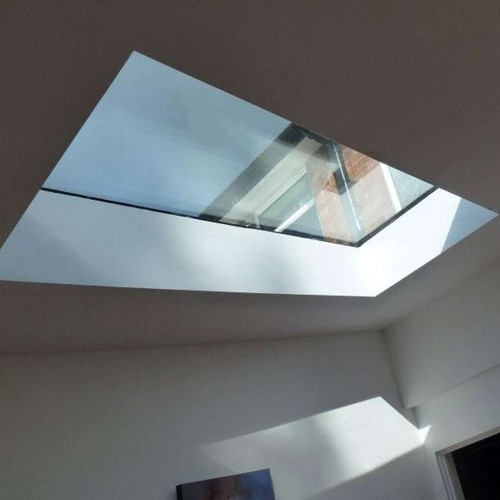

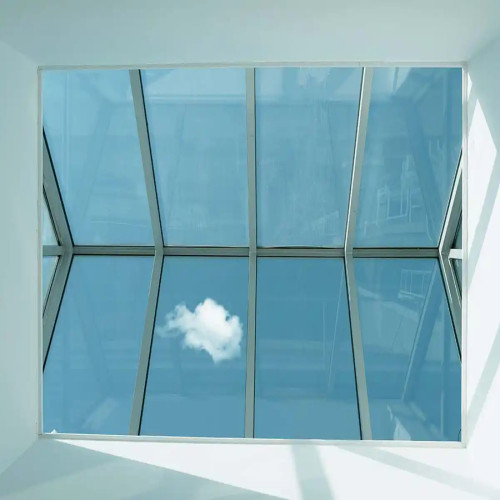

Skylight – Product Overview
The aluminum skylight system is an advanced architectural solution designed to maximize natural light and enhance indoor environments. Available in fixed or operable configurations, it provides both daylighting and ventilation functions. Engineered with high-quality aluminum frames and high-performance glazing, it ensures durability, energy efficiency, and weather resistance for various building types.
Why Choose Our Aluminum Skylight
● Natural Daylighting
Maximizes natural light, improving indoor comfort and reducing energy consumption.
● Optional Ventilation Function
Operable designs allow natural airflow and indoor air circulation.
● Weather Resistance
Engineered for reliable water tightness and wind resistance in roof applications.
● Energy Efficiency
Supports Low-E and insulated glass options for improved thermal performance.
● Smart Control Options
Available with electric or remote control systems for convenient operation.
✔ Easy Installation & Maintenance
· On-site assembly allows flexible adjustments
· Convenient for long-term repair and replacement
· Suitable for international construction projects
✔ Proven Performance & Compliance
· Meets ASTM and AAMA standards
· Excellent water tightness and air sealing
· Long-term corrosion resistance for coastal environments
Technical Performance
| Item | Performance | |
| Wind Load Resistance | 3000–7000 Pa | |
| Water Tightness | ≥ 300–600 Pa | |
| Air Infiltration | ≤ 0.06–0.3 cfm/ft² | |
Thermal Performance | 1.2–2.5 W/m²·K | |
| Acoustic Insulation | 35–50 dB | |
Seismic Performance | ±20–25 mm Inter-story drift | |
Corrosion Resistance | 2000h Salt Spray Test | |
Applications – Commercial Projects
● Villas
● Residential Buildings
● Commercial Complexes
● Atriums
● Offices
● Public Buildings
This aluminum skylight is widely used in modern urban architecture requiring both performance and aesthetics.
FAQ –Skylight System
Q1: Can your skylight system meet roof structural and wind load requirements?
Yes, our skylight systems are engineered according to project-specific structural calculations. They are designed to withstand wind loads and roof conditions for both residential and commercial applications, with engineering support provided.
Q2: What waterproofing and drainage design do you use for skylight systems?
We use multi-layer sealing systems combined with integrated drainage channels to ensure excellent waterproof performance, preventing leakage even under heavy rain conditions.
Q3: Can you provide fixed and operable (opening) skylight options?
Yes, we offer both fixed skylights for daylighting and operable skylights with manual or electric opening systems for ventilation, depending on project requirements.
Q4:Can the skylight be customized based on architectural drawings?
Absolutely. We provide full customization including dimensions, glass type, frame structure, opening method, and control systems based on architectural drawings and project specifications.
Q5: Do you provide project support?
Yes, we provide:
· Shop drawings
· Engineering solutions
· Installation guidance
· OEM/ODM services
