Materials & Systems
Engineered Curtain Wall Solutions for Global Architecture
Every high-performance facade begins with carefully selected materials and precisely integrated systems. FOWALL curtain wall solutions combine architectural-grade aluminum profiles, advanced thermal break technology, multi-layer glazing configurations, reliable weather sealing, and durable hardware components to create complete building envelope solutions.
Discuss Your ProjectEach component is engineered to work together — delivering structural reliability, energy efficiency, weather protection, and long-term performance for commercial buildings, high-rise developments, and architectural projects worldwide.
High-Grade Aluminum
Architectural-grade alloy profiles with PVDF, powder coating, and anodized finishes for structural integrity and corrosion resistance.
Advanced Glazing
Custom IGU configurations with Low-E coatings, argon gas fill, and warm-edge spacers for thermal and acoustic performance.
Multi-Layer Sealing
EPDM, silicone, and TPV gasket systems with pressure-equalized drainage for proven water and air tightness.
Precision Hardware
AISI 304 and 316 stainless steel components with multi-axis adjustment for reliable load transfer and movement accommodation.
Thermal Break Technology
Polyamide strip, PU pour-and-debridge, and thermal separator options to minimize heat transfer and condensation risk.
BIM & Digital Delivery
3D BIM modeling, factory monitoring, and documented inspection for complete project transparency.
High-Grade Aluminum Profiles
The Structural Foundation
Aluminum profiles form the primary structural framework of every modern curtain wall system. FOWALL sources architectural-grade alloys — selected for their strength-to-weight ratio, corrosion resistance, and consistent surface quality.
Through controlled extrusion, precision CNC fabrication, and multi-stage finishing processes, each profile achieves tight dimensional tolerances and seamless integration with glazing, gaskets, and connection hardware.
- PVDF Fluorocarbon Coating — exceptional UV resistance and long-term color stability
- Powder Coating — wide color gamut with strong impact and abrasion resistance
- Anodized Finish — metallic appearance with enhanced surface hardness
- Custom Decorative Finishes — wood-grain transfer, metallic effects, textured surfaces
Thermal Break Technology
Engineered Energy Separation
Aluminum's naturally high thermal conductivity demands a deliberate thermal separation strategy within the framing system. FOWALL integrates advanced thermal break technologies to create a continuous insulation barrier between interior and exterior aluminum sections.
Polyamide Strip (PA66 GF25)
Glass-fiber-reinforced nylon strips mechanically locked into dual aluminum extrusions. High structural composite strength with dual interior/exterior finish capability.
Polyurethane Pour & Debridge
Liquid PU poured into a thermal cavity, cured, then the aluminum bridge is cut away. Cost-effective thermal improvement with single-piece extrusion simplicity.
Thermal Separator (PVC-U / EPDM)
Low-conductance isolator positioned in the pressure-plate gutter. Separates exterior cover from structural mullion while maintaining dual finish options.
Thermal break depth is engineered to accommodate both double-glazed and triple-glazed insulating glass units. The result: a facade system designed to meet or exceed regional energy code requirements including ASHRAE 90.1.

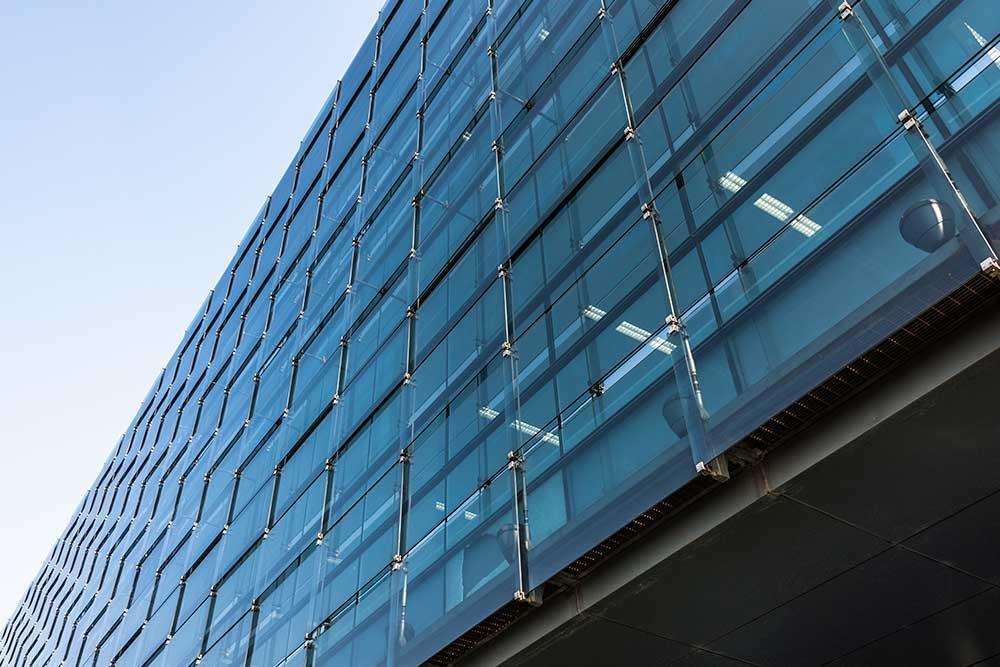

Architectural Glass Solutions
Performance-Driven Glazing for Every Climate
Glass is the single most influential element governing facade energy performance, daylight quality, and acoustic comfort. FOWALL provides custom glazing configurations engineered to balance thermal insulation, solar control, natural daylight, and acoustic attenuation.
Single Silver Low-E
Balanced thermal insulation with moderate solar control. Ideal for temperate climates and year-round comfort.
Double Silver Low-E
Enhanced solar control with strong thermal insulation. Best for hot climates and cooling-load-driven buildings.
Triple Silver Low-E
Maximum thermal isolation and solar reflectivity. Designed for extreme climates and net-zero building targets.
Weather Sealing & Hardware
Multi-Layer Protection & Precision Components

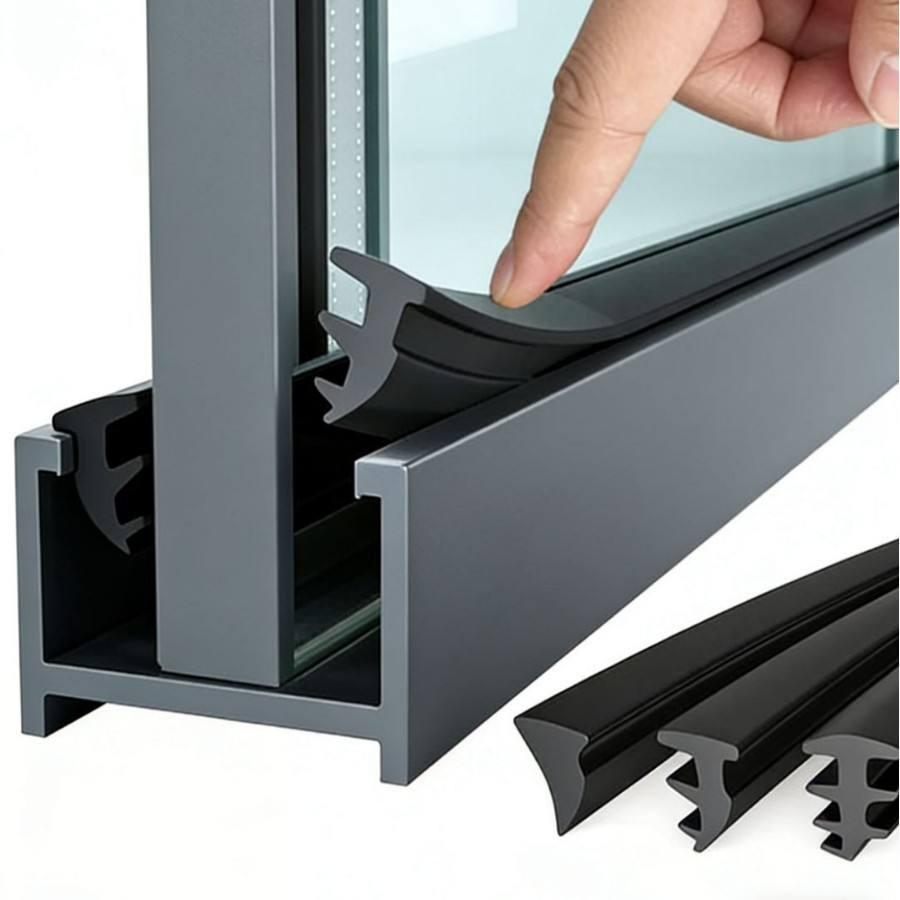

Gasket & Sealant Technology
EPDM primary weather seals with excellent ozone and UV resistance. Structural and weatherproof silicone sealants for reliable glass-to-frame bonding. Pressure-equalized rain screen principle with multi-level sealing strategy and integrated drainage channels at each horizontal transom.
Stainless Steel & Anchoring
AISI 304 for standard commercial projects and AISI 316 for coastal and high-corrosion environments. Engineered brackets provide multi-axis installation adjustment, reliable dead-load transfer, and accommodation of inter-story drift and thermal expansion.
Thermal Break Components
Polyamide and PVC-U isolator components integrated into pressure plates, mullion caps, and bracket connections close thermal bridges at every mechanical connection point.
Integrated Curtain Wall Systems
Complete Facade Solutions for Every Project

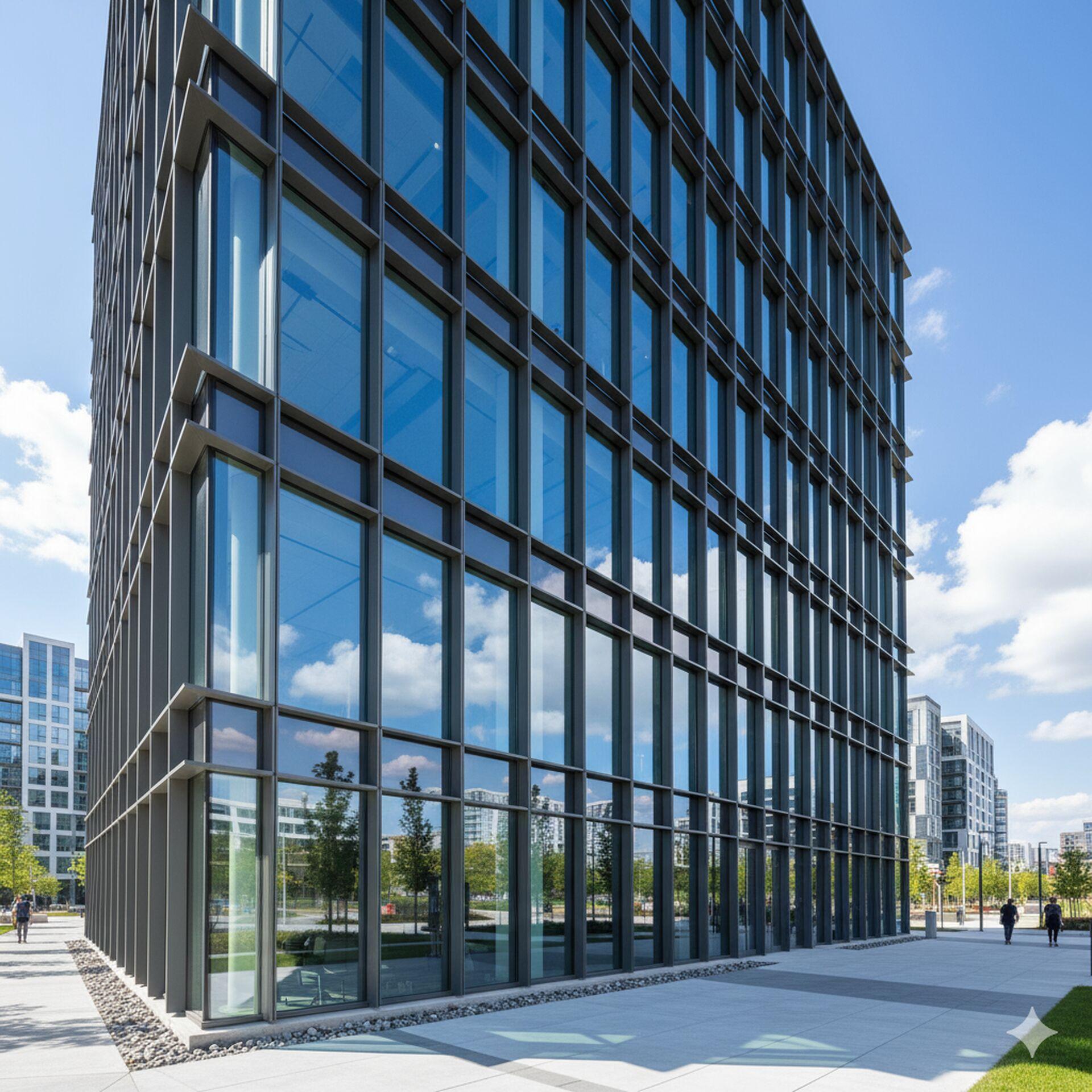

Framed Curtain Wall
Conventional mullion-and-transom assemblies with maximum on-site flexibility. Customizable grid layouts for low- to mid-rise commercial buildings.

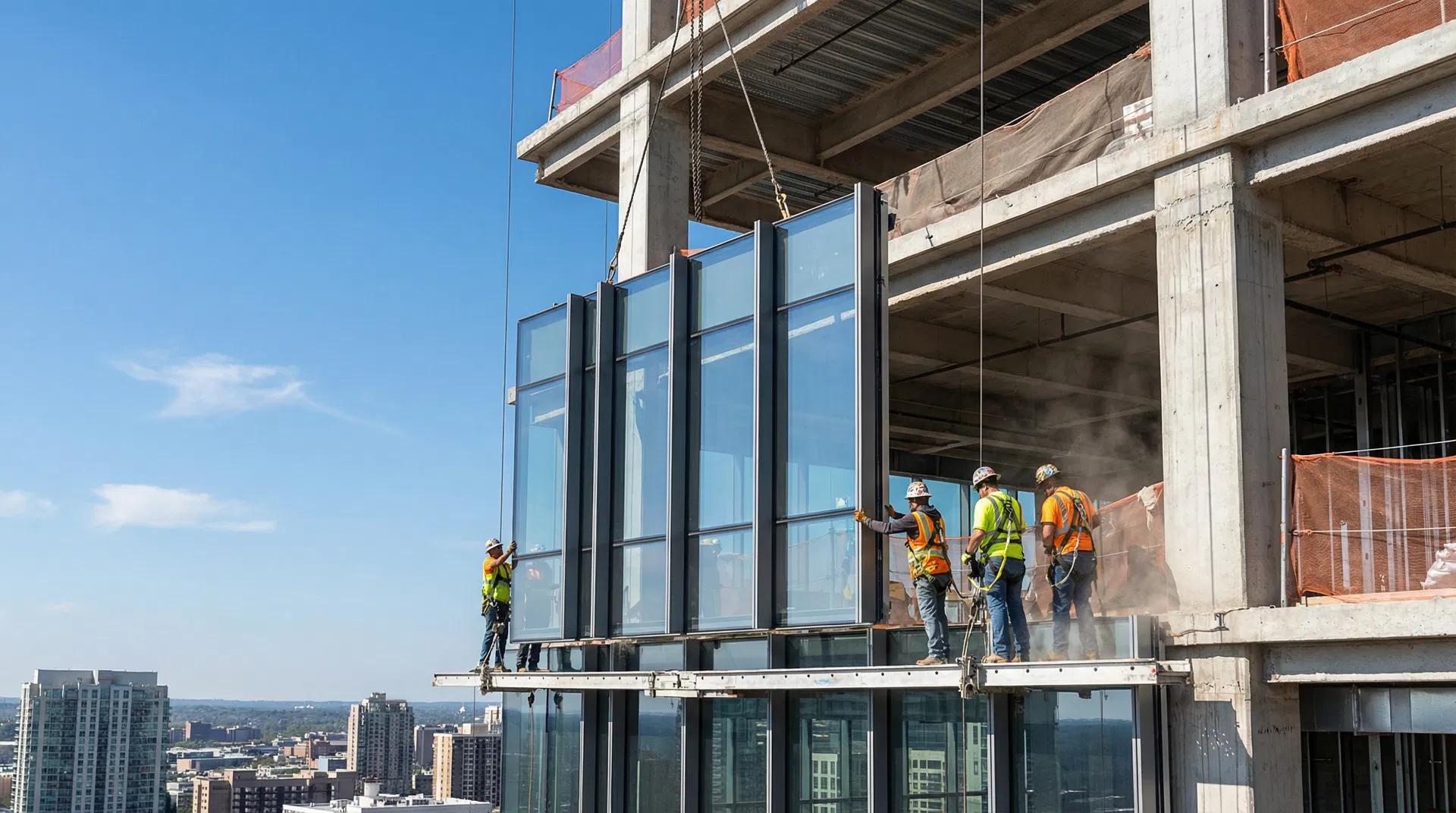

Unitized Curtain Wall
Factory-assembled facade modules with integrated framing, glazing, and drainage. Engineered for high-rise towers and large-scale developments.

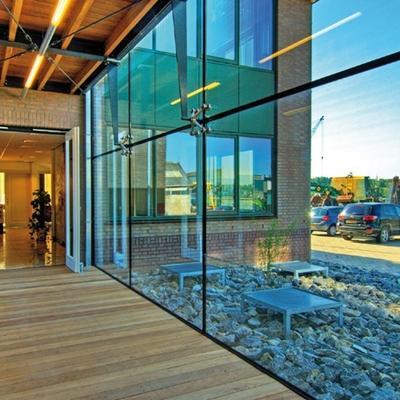

Glass Wall Systems
Maximum transparency with minimal visible aluminum. Clean sightlines for premium lobbies, atriums, and architectural feature spaces.

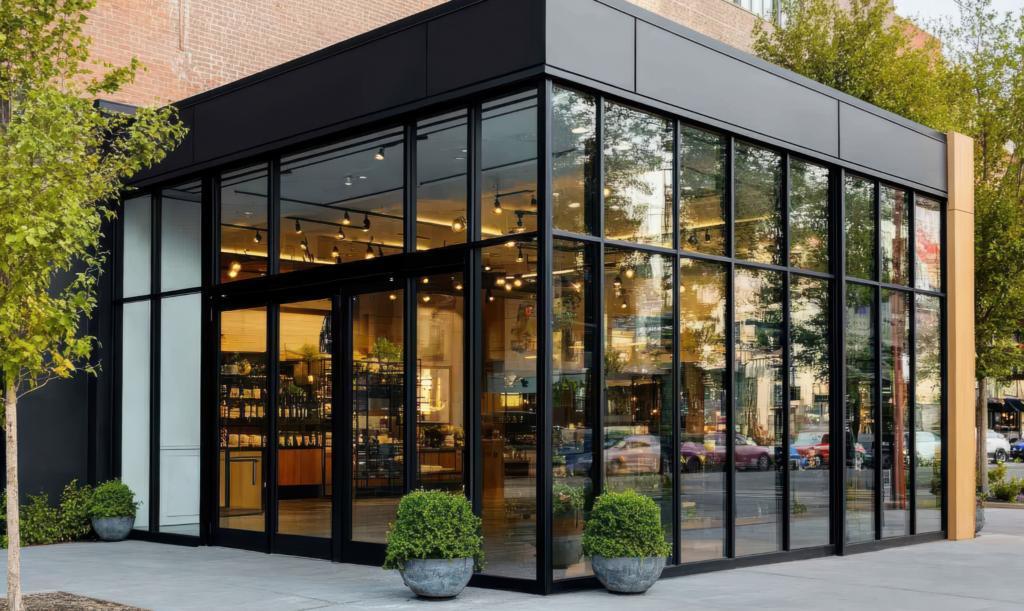

Storefront Systems
Versatile aluminum framing for ground-level retail, shopping centers, and office entrances. High-traffic durability with flexible glazing options.

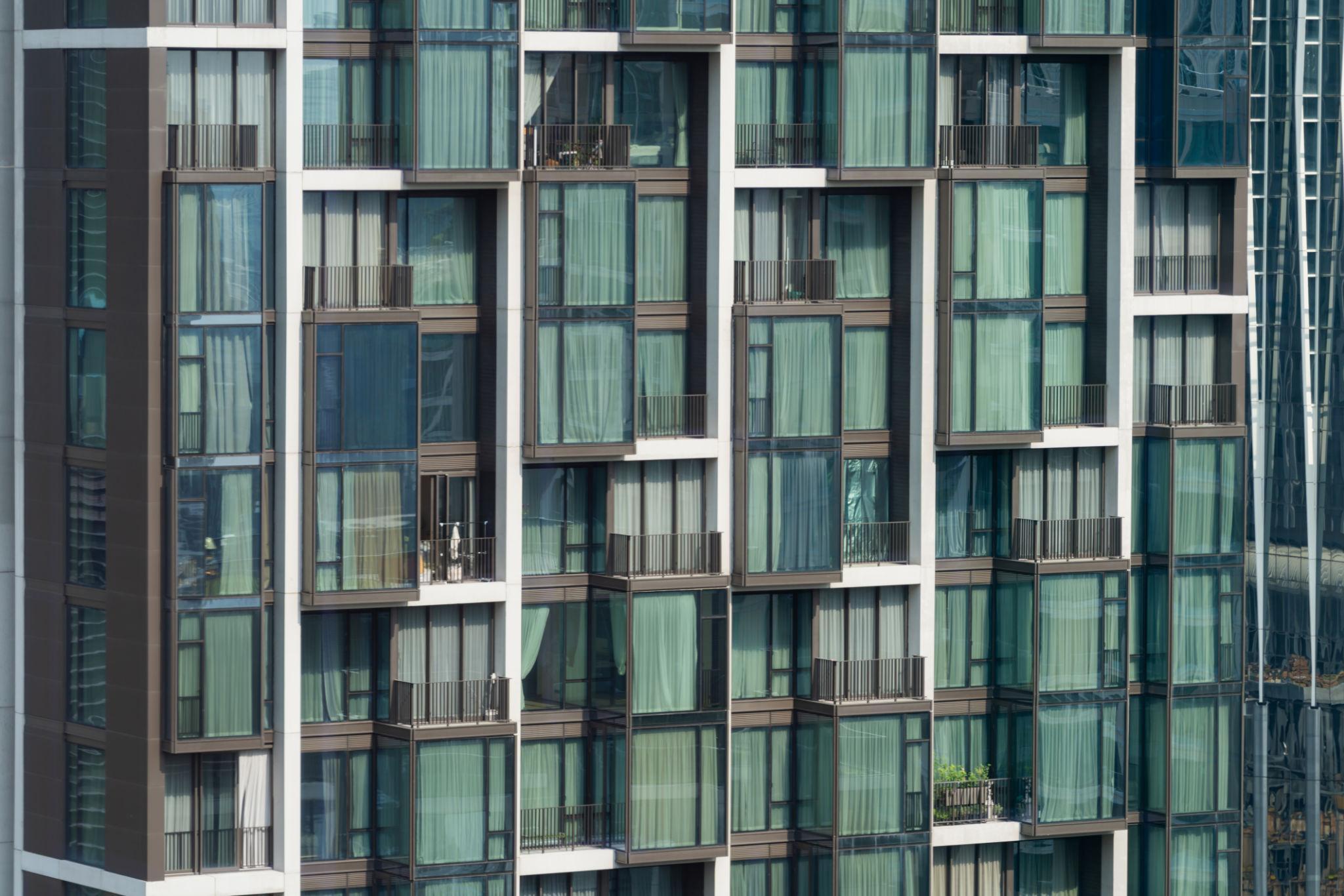

Window Wall Systems
Slab-to-slab aluminum framing installed between floor slabs. Efficient installation for apartment buildings, residential towers, and mid-rise projects.

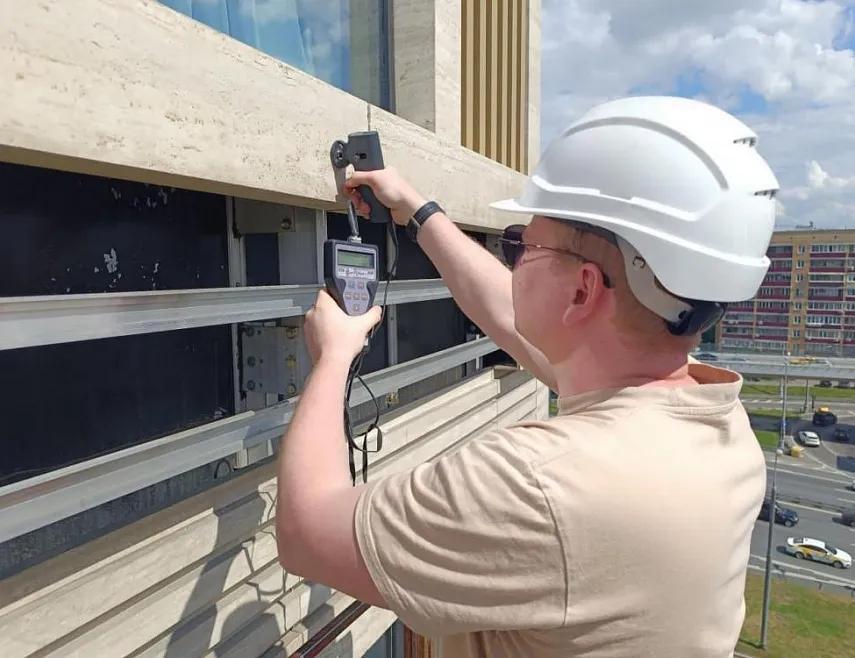

Quality & Digital Delivery
Visibility at Every Stage
Factory Production Monitoring
Real-time factory monitoring with key-stage visibility. Material batch inspection reports, mill certifications, and coating thickness documentation.
Transparent Quality Assurance
Documented inspection at every stage — from raw material to pre-shipment. Glass quality certification and IGU fogging test records included.
BIM & Digital Engineering
3D BIM modeling, Revit-based design coordination, clash detection, and real-time project tracking from factory fabrication through site installation.
Built with Precision. Delivered with Confidence.
From carefully selected materials and integrated thermal engineering to transparent manufacturing and digital project coordination, every FOWALL curtain wall system is engineered to deliver reliable building envelope performance.
FOWALL — Precision You Can See.
